Interchangeable NLJD Antennas

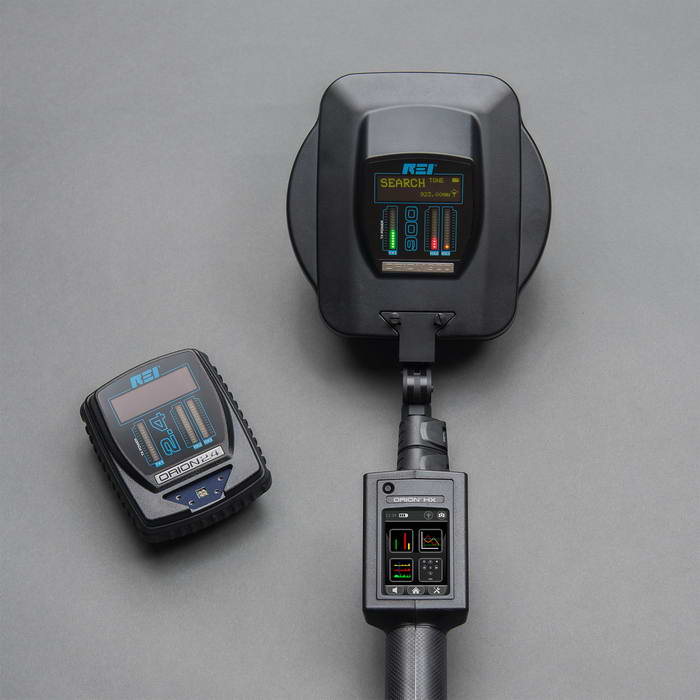

The hand-held ORION HX Deluxe Non-Linear Junction Detector (NLJD) has interchangeable 2.4 GHz and 900 MHz antenna heads. The ORION HX Deluxe NLJD is used to sweep areas for electronic semi-conductor components. In this way, the ORION HX Deluxe NLJD detects and helps to locate hidden electronics or eavesdropping devices regardless of whether the electronic device is turned on.
Efficiency: users can detect both small, modern circuitry in office environments with the 2.4 antenna and older, less refined circuitry through dense materials with the 900 antenna
Usability: antenna heads are easily exchanged by simply turning a pair of thumb screws

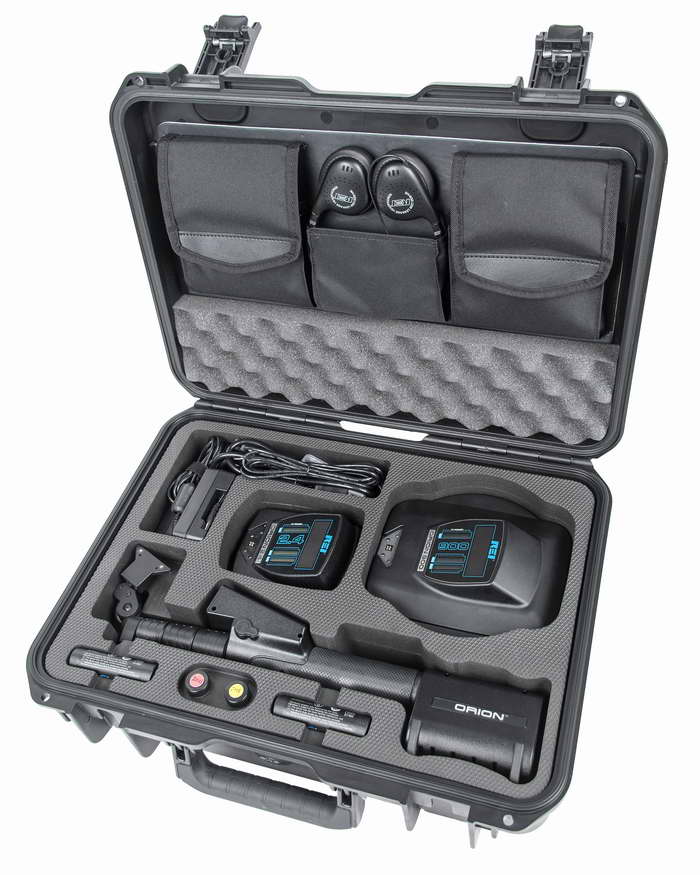

Portability: lightweight design with convenient carrying case
Features
- Digitally modulated transmit signal
- Correlated 2nd & 3rd harmonic response
- Adjustable DSP gain
- Histogram graph displays continuous history of harmonic response and power adjustment
- Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
- 1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
- Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
- Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
- No pole or cable assembly required with integrated telescoping pole
- Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Non-Linear Junction Detection
- Locating Hidden Electronics
- Locating Electronic Contraband
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Specifications
TRANSMITTER |
2.4 antenna transmit power: 3.3 W; G model: 6.6 W
900 antenna transmit power: 1.4 W; G model: 3.2 W
Power control: manual or auto control
2.4 antenna frequency band: 2.404 GHz - 2.472 GHz
900 antenna frequency band: 905 - 925 MHz; G model: 840 - 960 MHz
Transmit channels: manual or auto selection, more than 60 available
Transmit modulation: digital spread spectrum, 1.25 MHz bandwidth
Please note: G model authorized for use only by agencies, persons and entities not restricted by FCC & IC. Both models are CE marked for public safety and security. |
RECEIVER |
Simultaneous 2nd & 3rd harmonic receive
Digitally correlated
2.4 antenna frequency band:
- Second Harmonic (4.808 GHz – 4.944 GHz)
- Third Harmonic: (7.212 GHz – 7.416 GHz)
900 antenna frequency band:
- Second Harmonic (1810 MHz - 1850 MHz); G model (1680 MHz - 1920 MHz)
- Third Harmonic: (2715 MHz - 2775 MHz); G model (2520 MHz - 2880 MHz)
2.4 antenna sensitivity: -140 dBm for both harmonics
900 antenna sensitivity: -130 dBm for both harmonics |
DISPLAY
|
Handle-mounted 2.7 inch touch screen controller display
Antenna-mounted display
Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.) |
MECHANICAL |
Extension lengths: 16-51 in (40.6 - 129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION HX Deluxe dimensions (2.4 antenna): 22.4 in x 3.75 in x 3 in (57 cm x 9 cm x 7.5 cm)
ORION HX Deluxe dimensions (900 antenna): 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm)
Overall Extended Length: 58 in (147 cm)
ORION HX Deluxe weight w/ battery (2.4 antenna): 3 lbs (1.4 kg)
ORION HX Deluxe weight w/ battery (900 antenna): 3.6 lbs (1.6 kg) |
BATTERY |
Input AC: 100-240 V, 50-60 Hz
Run time: >4 hours per battery (typical)
Charge time: 2.5 hours per battery
Batteries: Lithium ion rechargeable (2 included)
The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040, rated 11.25V, 2950mAh, 33.2Wh. |
THERMAL |
Operating temperature: -10 to 50°C
Battery charging temperature: 5 to 37°C
Storage temperature: -20 to 60°C
Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life. |
|
