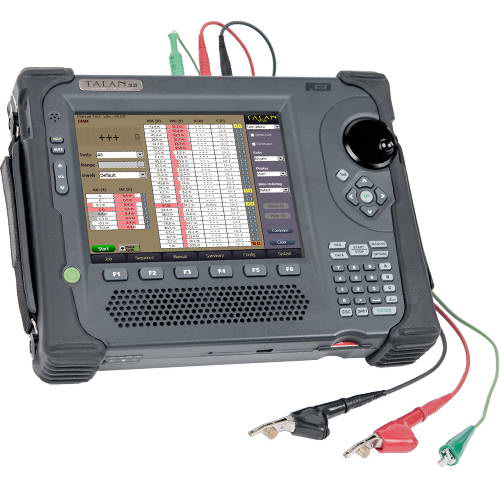

TALAN™ 3.0 Telephone & Line Analyzer电话检测仪
Detect Wire Taps and Eavesdropping
The NEW TALAN 3.0 Telephone and Line Analyzer represents advanced capability to detect and locate illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems. New hardware provides the ability to test twisted pairs against modern telecommunication threats including shield and ground.
Efficiency: compares the results of multiple tests on multiple phone lines to quickly identify threatening anomalies
Usability: combines several countermeasure testing capabilities into a single piece of equipment (voltage, current, resistance, capacitance, non-linear junction detection, frequency domain reflectometry, and digital demodulation technology)
Portability: weighs only six pounds and data can be exported for further analysis and reporting
Older model TALANs can be converted to TALAN 3.0 but will require hardware changes. Contact REI for a quote.
Features
- Combines multiple testing capabilities into a single piece of equipment
- Automatic internal pair switching matrix performs tests on all pair combinations
- Extensive, advanced VoIP traffic filtering makes it easier to locate and identify suspicious packet information
- The patent-pending Fast Fourier Transform (FFT) algorithm converts network traffic into a spectrum view, creating visually identifiable patterns not easily noticed in a traditional packet list
- Quickly performs common test functions including:
- Multimeter tests (voltage, current, resistance, capacitance)
- RF Broadband Detector (up to 8 GHz)
- Spectrum Analyzer (up to 85 MHz)
- High Gain Audio Amplifier
- Bias Generator ±80 VDC
- Audio Oscilloscope with active input (20 Hz to 20 KHz)
- Digital demodulation available to confirm that the telephone line is not passing audio
- Frequency Domain Reflectometer (FDR) to check for taps on the line
- Non-Linear Junction Detector (NLJD) functionality to detect electronics connected to a line
- Multi-test database system provides the ability to perform tests on all pair combinations, storing data for historical comparison and comparison against other lines
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Wire Tap Detection
- Telephone Line Testing
- Phone Line Analysis
- Eavesdropping Detection
- Intelligence Protection
- Executive Protection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Specifications
CONTROL SYSTEM |
Primary computer: 32 bit RISC processor, 520 MHz
Internal memory: 64 MB SDRAM (OS), 64 MB Flash
External memory: Compact Flash Type III, USB mass storage |
DIGITAL I/O |
Network: 10/100 Ethernet Controller for IP Packet Detection
USB: USB Device (A Type) supports external keyboard, mouse, and USB mass storage device; USB Host (B type) for future use |
ANALOG I/O |
Headphone output: 3.5 mm mono connector
Microphone input: 3.5 mm mono input |
USER INTERFACE |
Hard keys: 6 soft menu keys, 5 button quadrant navigation & other dedicated keys
Encoder: high-resolution optical encoder
Integrated touch screen with stylus
Test inputs:
- Dual MOD8: supports 2, 4, 6, & 8 wire modular phone jacks with shield
- Banana type: standard sleeved sockets: ring, tip, and earth
- SMB RF input: RF/antenna connection to 8 GHz broadband detector
- Expansion port: supports communication & measurement for use with future accessories
All inputs electrically isolated |
RF SYSTEM |
Spectrum Analyzer:
- Dual conversion, super-heterodyne receiver
- Frequency range: 30 kHz to 85 MHz
- Sweep time: 2 Seconds
- Step size: 1 kHz
- Bandwidth: 18 kHz
- Sensitivity: -100 dBm
Broadband Detector:
- RF SMB input: to 8 GHz
- Line level test: 100 kHz to 600 MHz
- Sensitivity: -65 dBm
|
DIGITAL MULTIMETER |
Quick response auto-ranging: 500msec Sample Rate
AC/DC Volts: 0 to 250V Maximum
AC/DC Current: 0 to 300mA Maximum
Resistance: 0 to 42MΩ
Capacitance: 50pF to 40µF |
BIAS GENERATOR |
Optically isolated, direct digital control: high voltage DAC
Output ceiling: ± 80 V
Output ceiling (shield): ±65VDC, ±33VAC
Modulation: fixed voltage, or variable rate Sine wave (10 Hz - 300 Hz) |
AUDIO |
Audio bandwidth: 20 Hz - 20 KHz
Gain: Up to 80 dB total system gain (voice band)
AGC: digitally controlled automatic gain
Filter: analog voice band filter (300 Hz to 3 kHz) |
POWER |
External input: 15 VDC @ 3A
Universal power supply: 100-240 VAC, 50-60 Hz
Removable battery: Inspired Energy Lithium Ion Rechargeable Battery Model #Ni2040HD29, rated 10.8V, 8.7Ah, 94Wh |
MECHANICAL |
Dimensions: 10 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
Unit weight with battery: 6 lbs (2.7 kg)
Case dimensions: 19.5 in x 14.9 in x 5.4 in (49.5 cm x 37.8 cm x 13.7 cm)
Case weight including unit and accessories: 19 lbs (7.1 kg)
Operating temperature: 0°C to +50°C | |
